Rehabilitation

Cross Cut Management

Rehabilitate cross-cuts — mud loading, drains, rail and track.

Titan Mining have specialised teams to rehabilitate cross cuts. Our crews load mud in the haulages and cross cut sections, grade and re-align tracks, and re-install drains, pumps, piping and drain columns.

Our Rail and Track Rehabilitation teams replace rails, sleepers and drains, rebuild bunt walls, and perform rail maintenance and ballasting.

We measure and manufacture step-up fish plates to correct horizontal alignment, with pre-stressed sleeper support fitting beneath the fish plate joint for additional support. Rail shims are manufactured to correct gaps between rails at joints.

Price on request — contact us for a quote tailored to your operation.

Request a quote Call +27 11 952 9906

Gallery

Installed underground

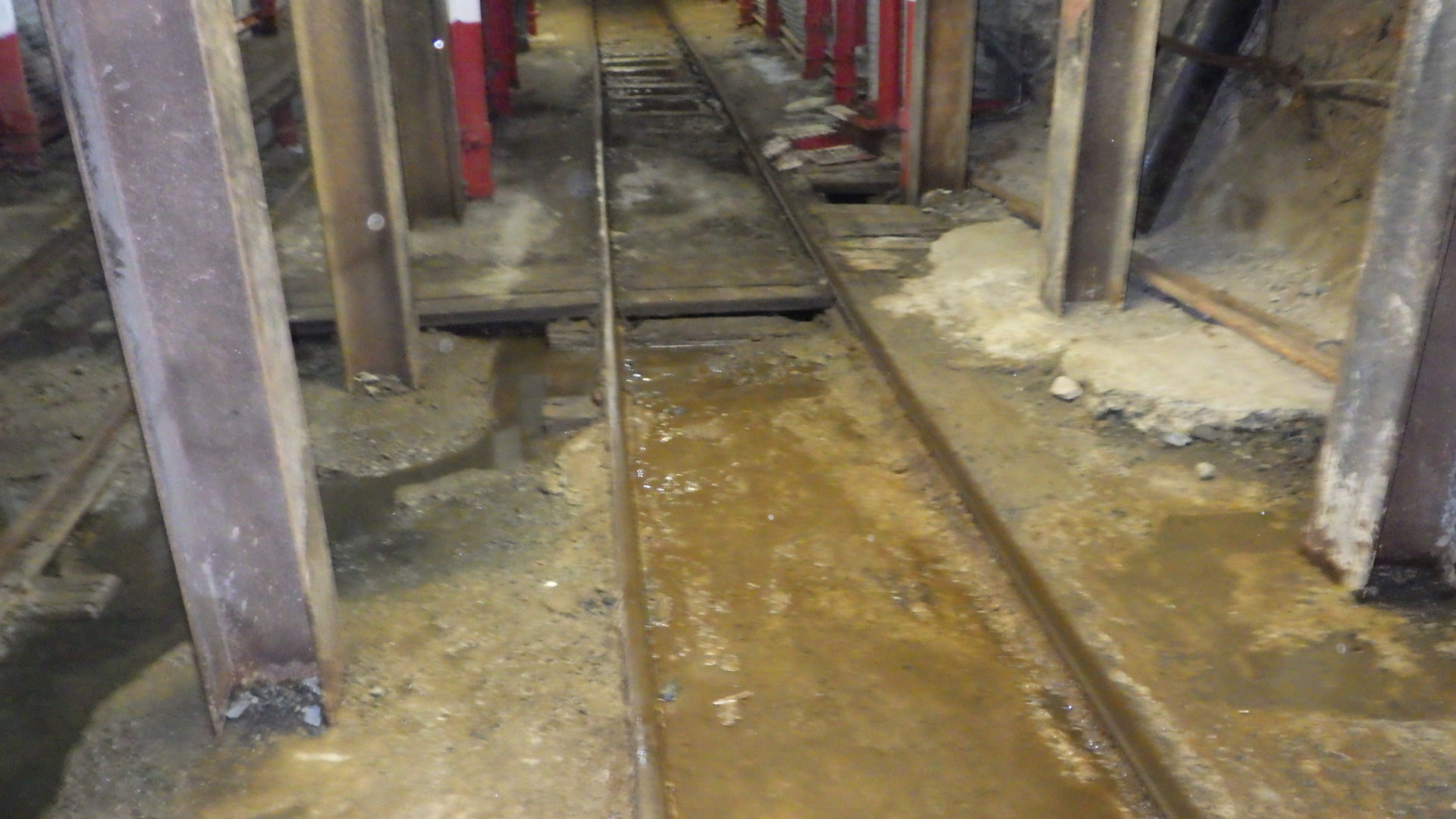

Cross Cut Management: Flooded crosscut. Standing water and thick slurry covering the rails and ballast, creating derailment and slip hazards before cleanup. — Flooded crosscut

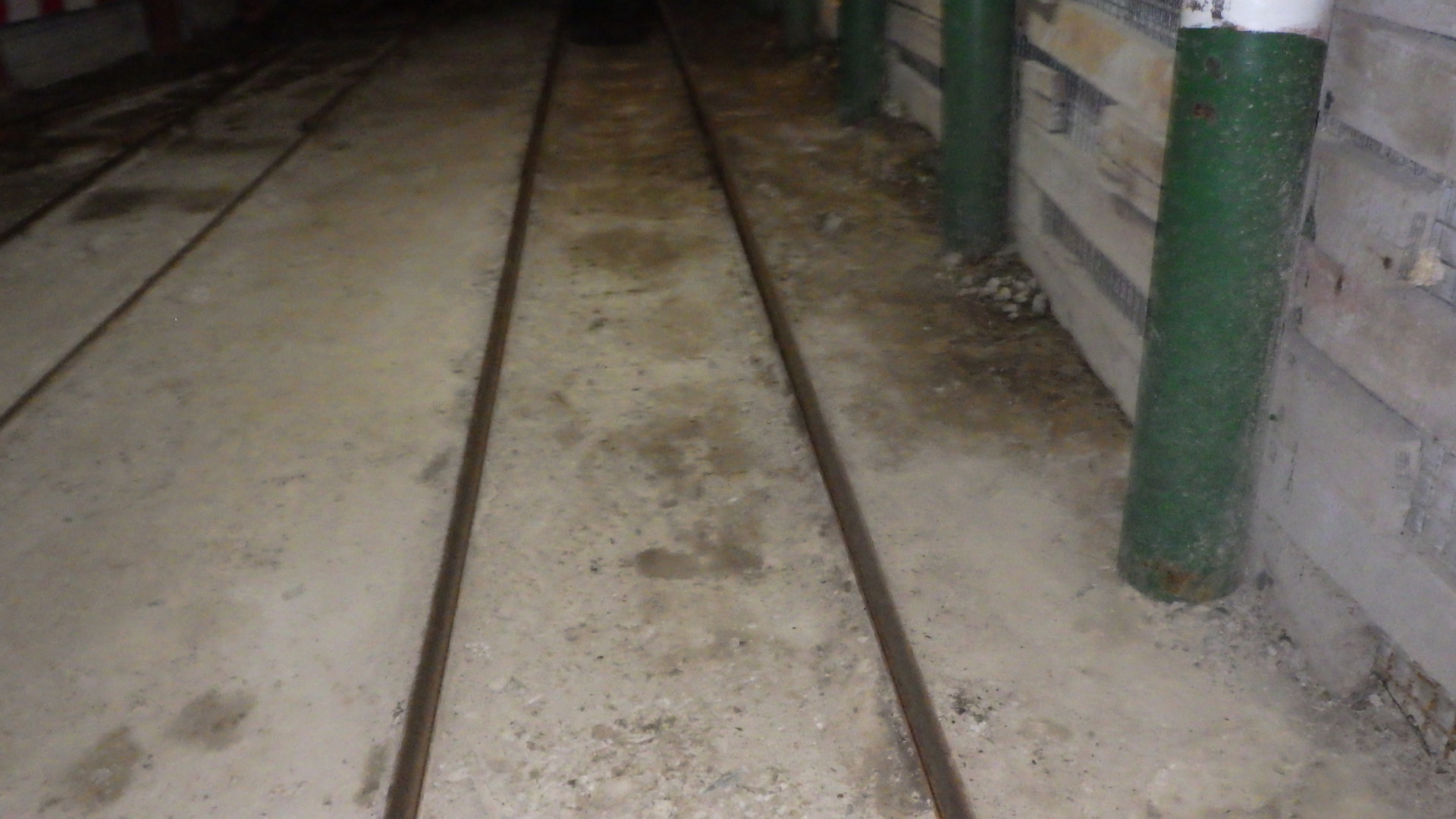

Cross Cut Management: Rehabilitated crosscut. Slurry loaded out, footwall cleaned, ballast reinstated and the travelling way restored with refreshed support props. — Rehabilitated crosscut

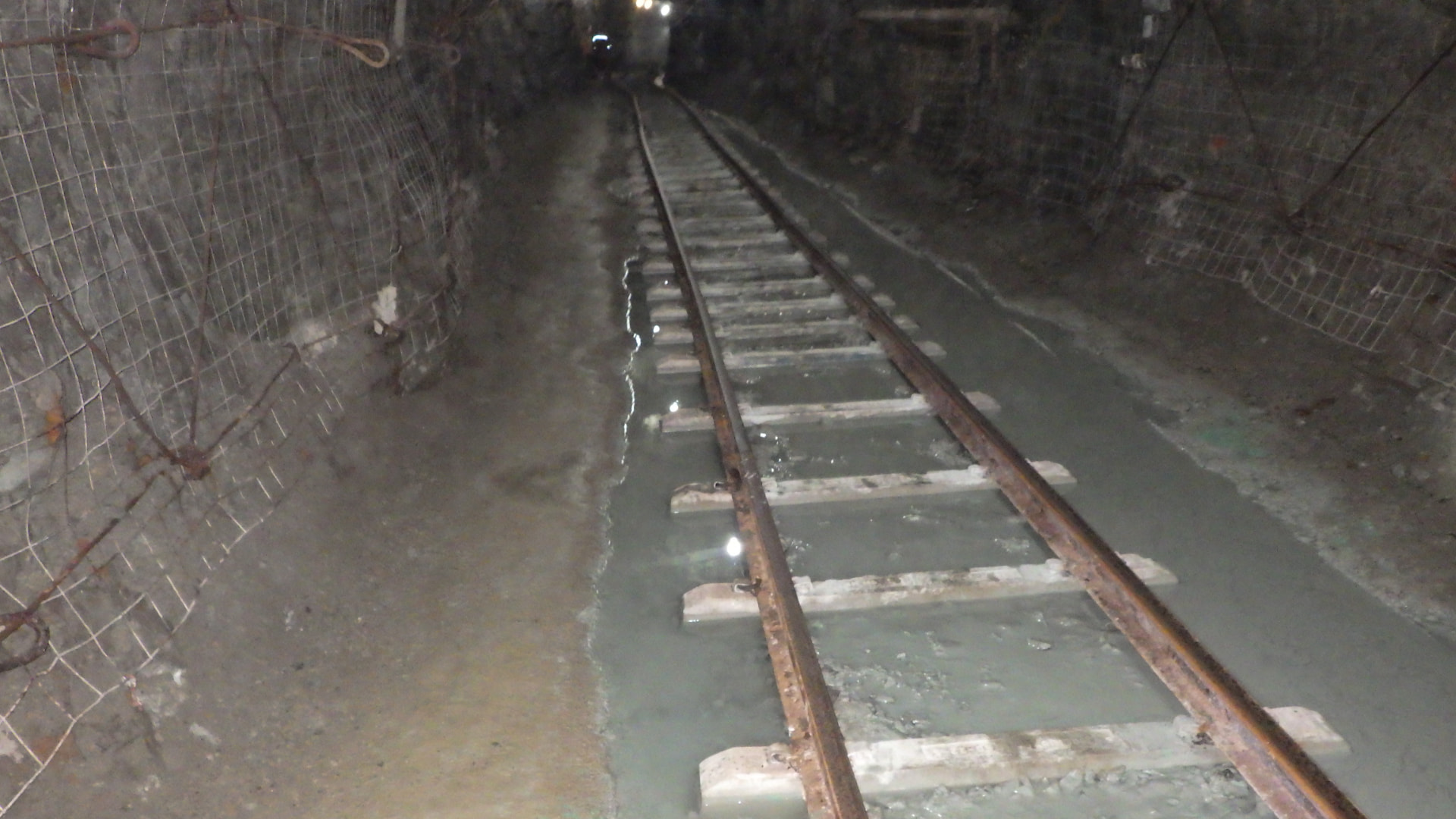

Cross Cut Management: Uncontrolled slurry runoff. Haulage track bed under water, where constant flow was breaking down the track foundation and stopping tramming. — Uncontrolled slurry runoff

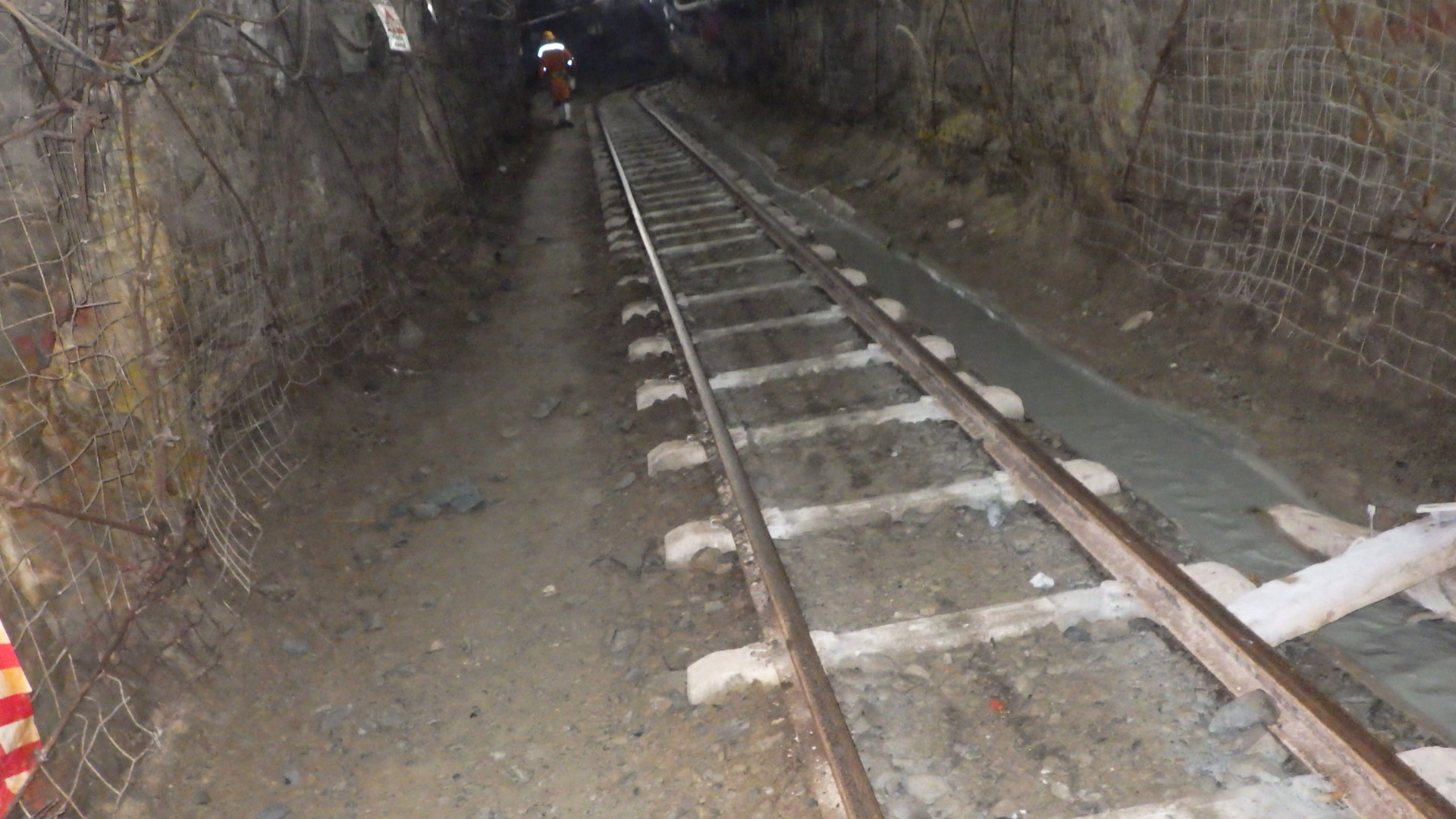

Cross Cut Management: Concrete side drain. Newly cast concrete side drain carrying water away from the cleared track bed of an active rail haulage. — Concrete side drain

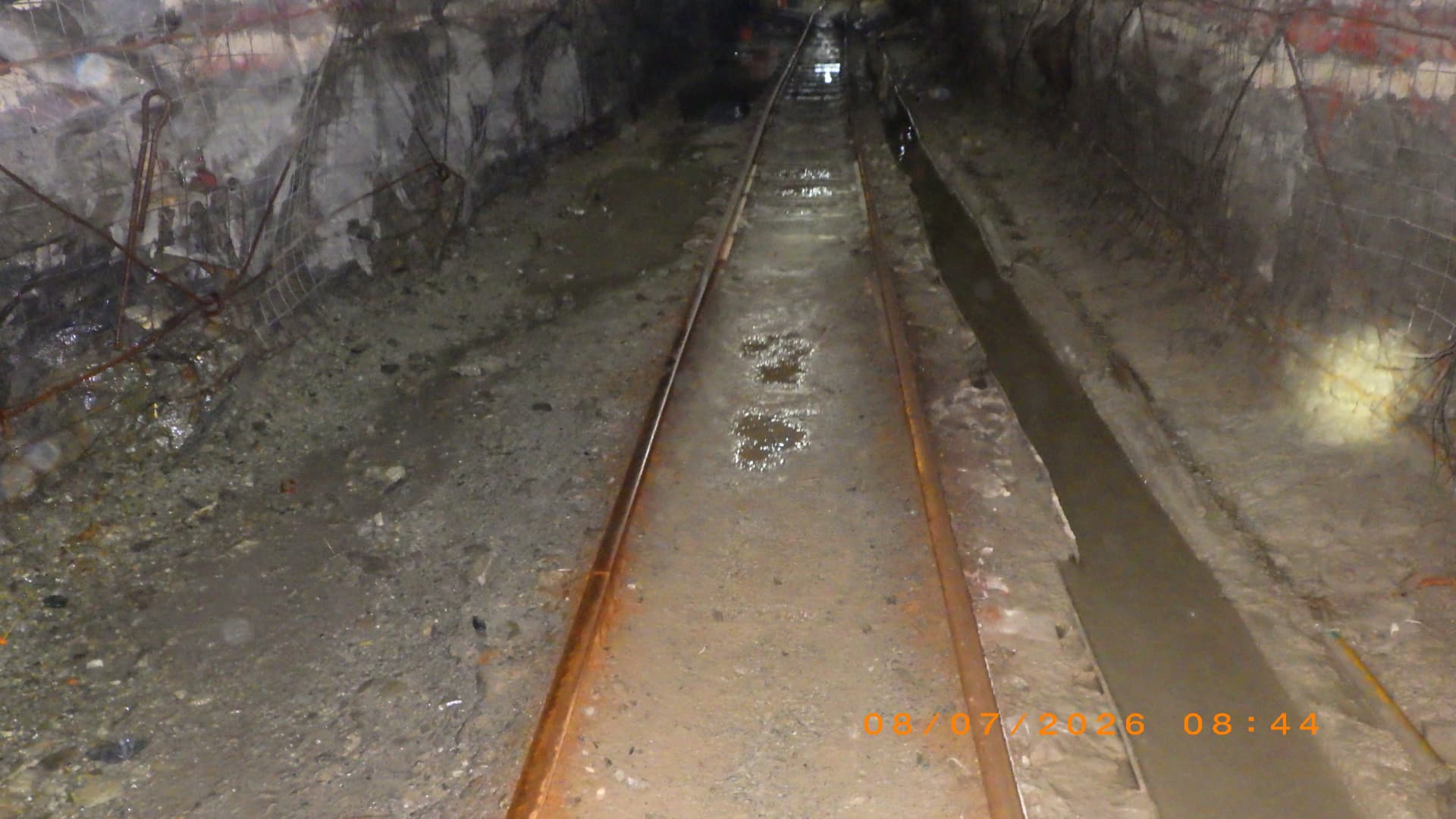

Cross Cut Management: Concreted track and drain. Concrete footwall poured between and along the rails, with a formed concrete drain along the sidewall. — Concreted track and drain

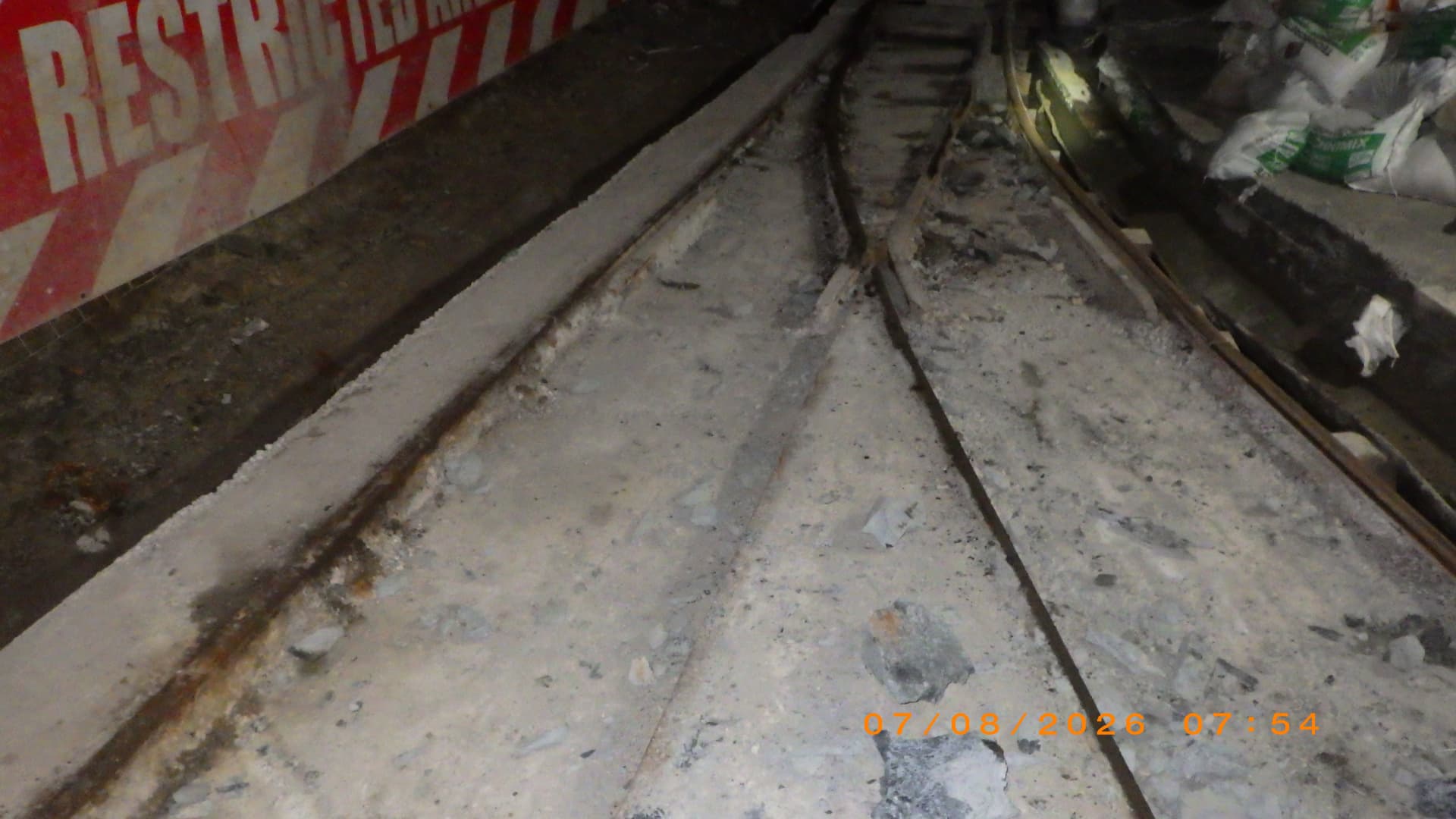

Cross Cut Management: Concreted rail switch. Rail switch and turnout set in concrete to hold alignment and prevent derailments where they usually start. — Concreted rail switch

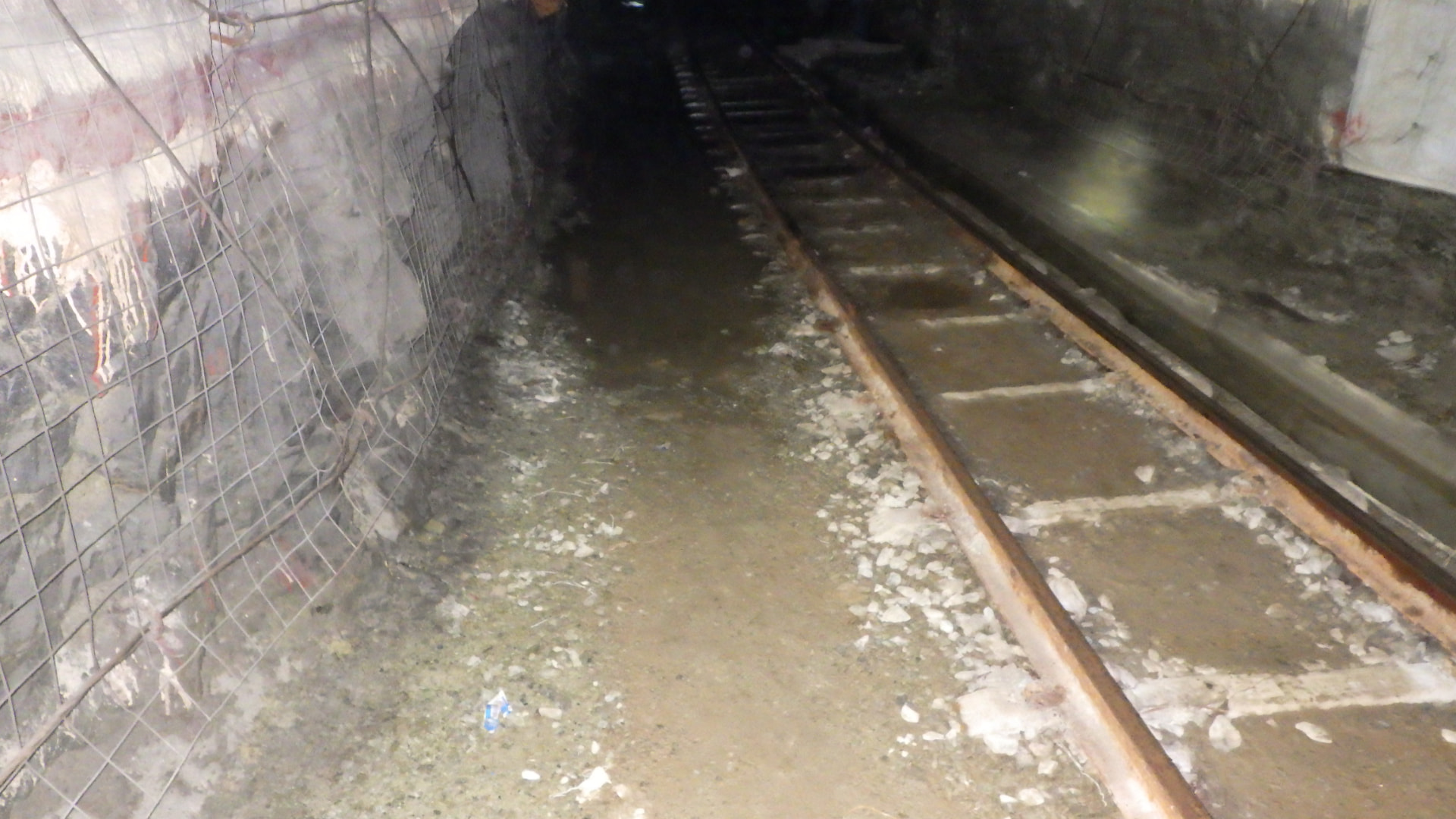

Cross Cut Management: Completed crosscut section. Restored passage with clean ballast, a clear drain line and unobstructed travelling clearance. — Completed crosscut section

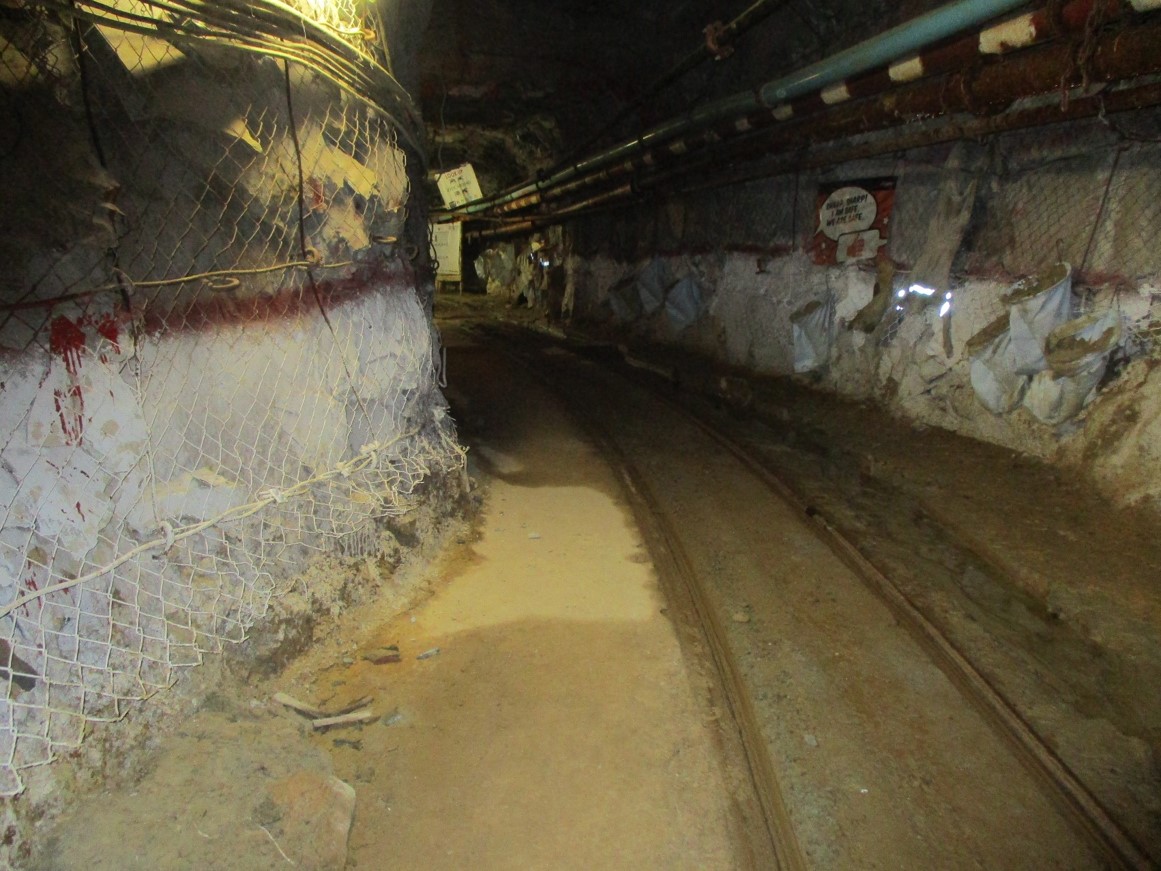

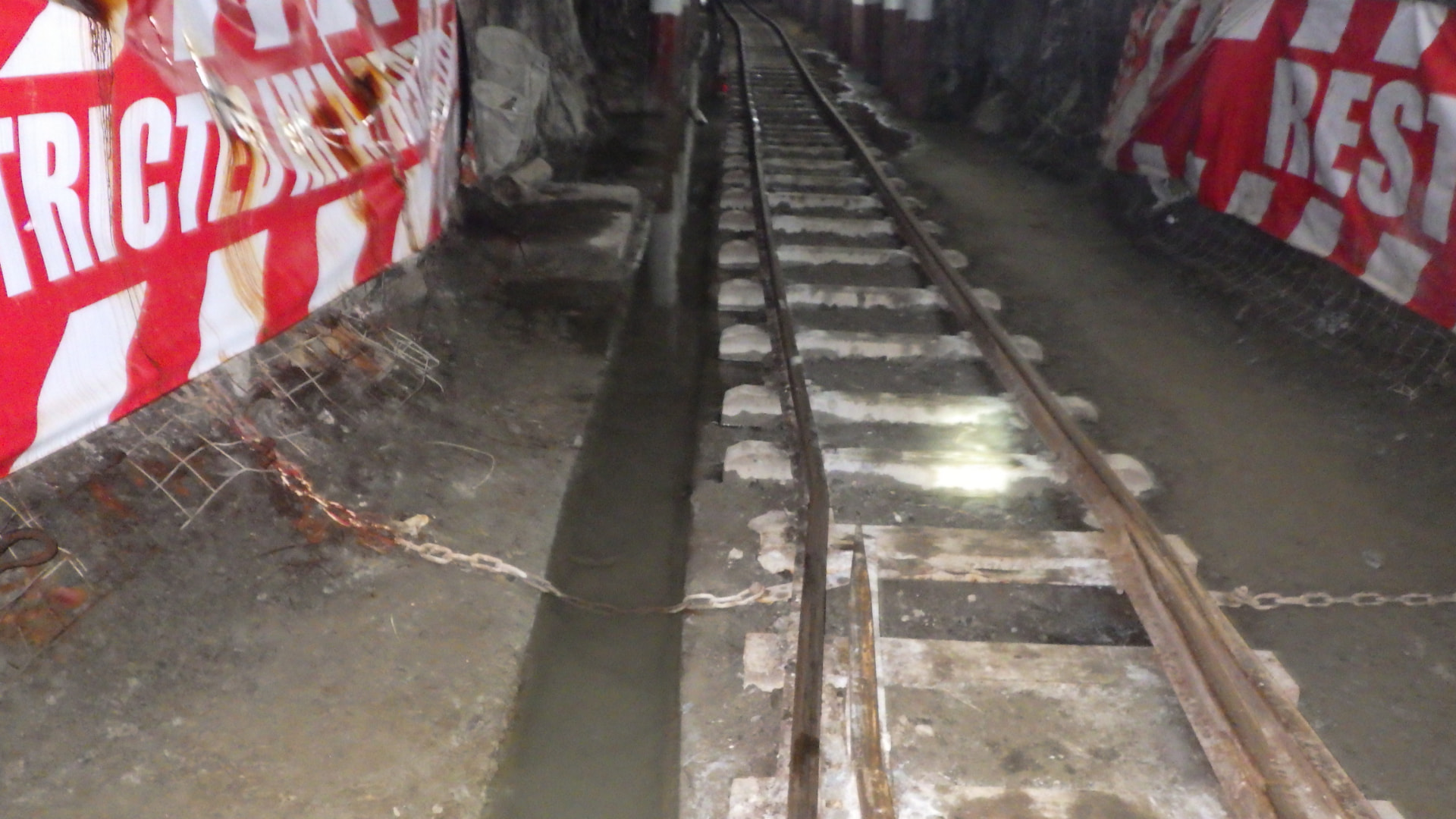

Cross Cut Management: Haulage cleared. Cleared footwall and aligned track giving locos, hoppers and personnel unobstructed access. — Haulage cleared

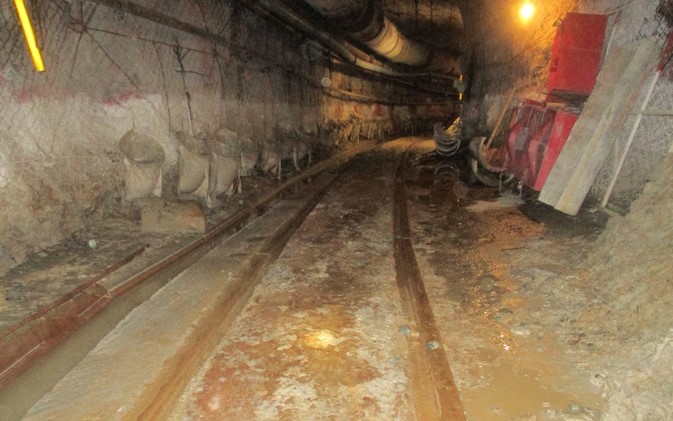

Cross Cut Management: Clear track through the crosscut. Track bed loaded out and cleared of mud, ready for safe tramming. — Clear track through the crosscut

Cross Cut Management: Cleared crosscut curve. Curved crosscut section with clean rails and a clear walkway beside the track. — Cleared crosscut curve

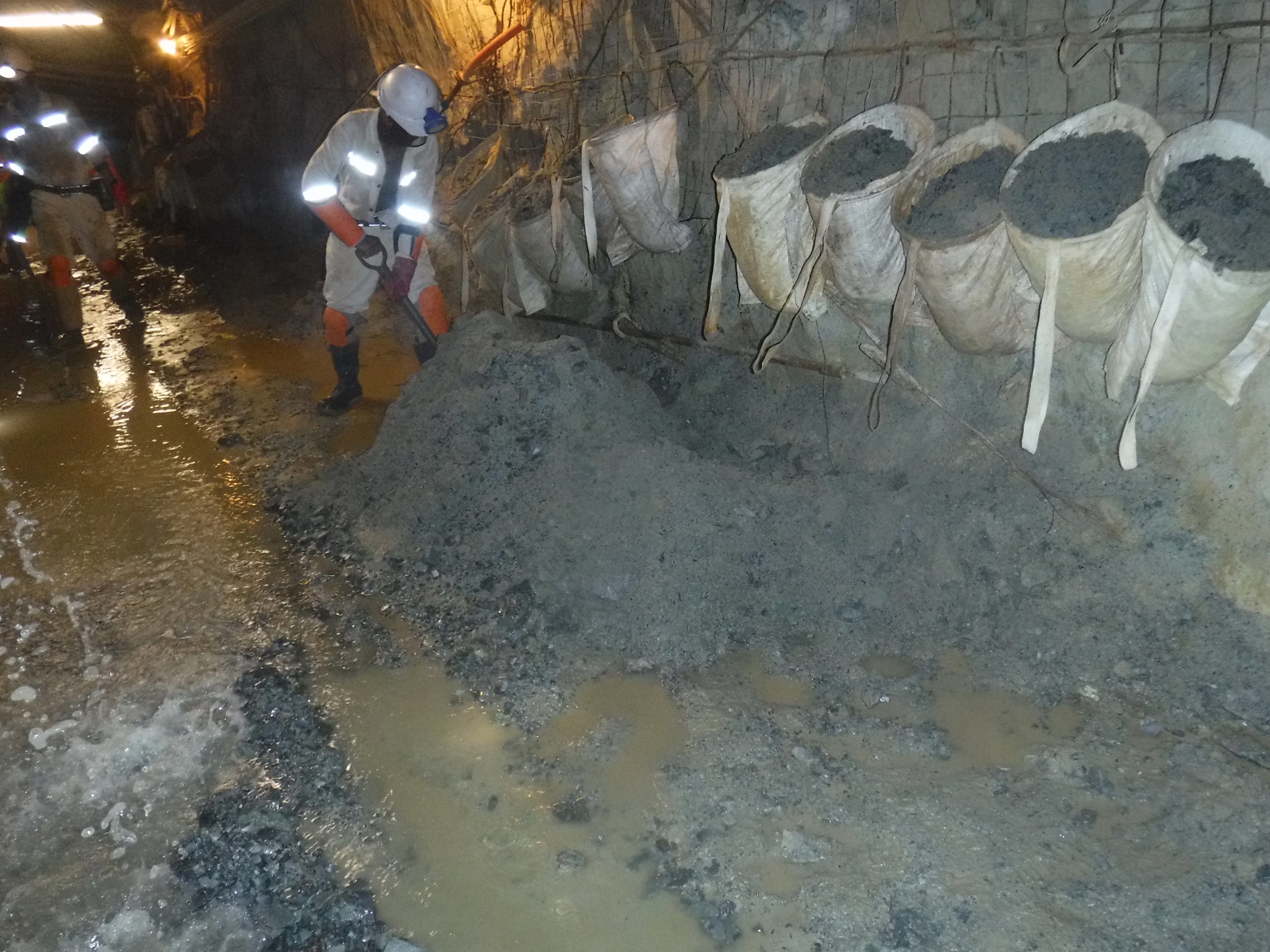

Cross Cut Management: Loading out mud. Titan crew loading out mud and slurry from a flooded crosscut by hand. — Loading out mud

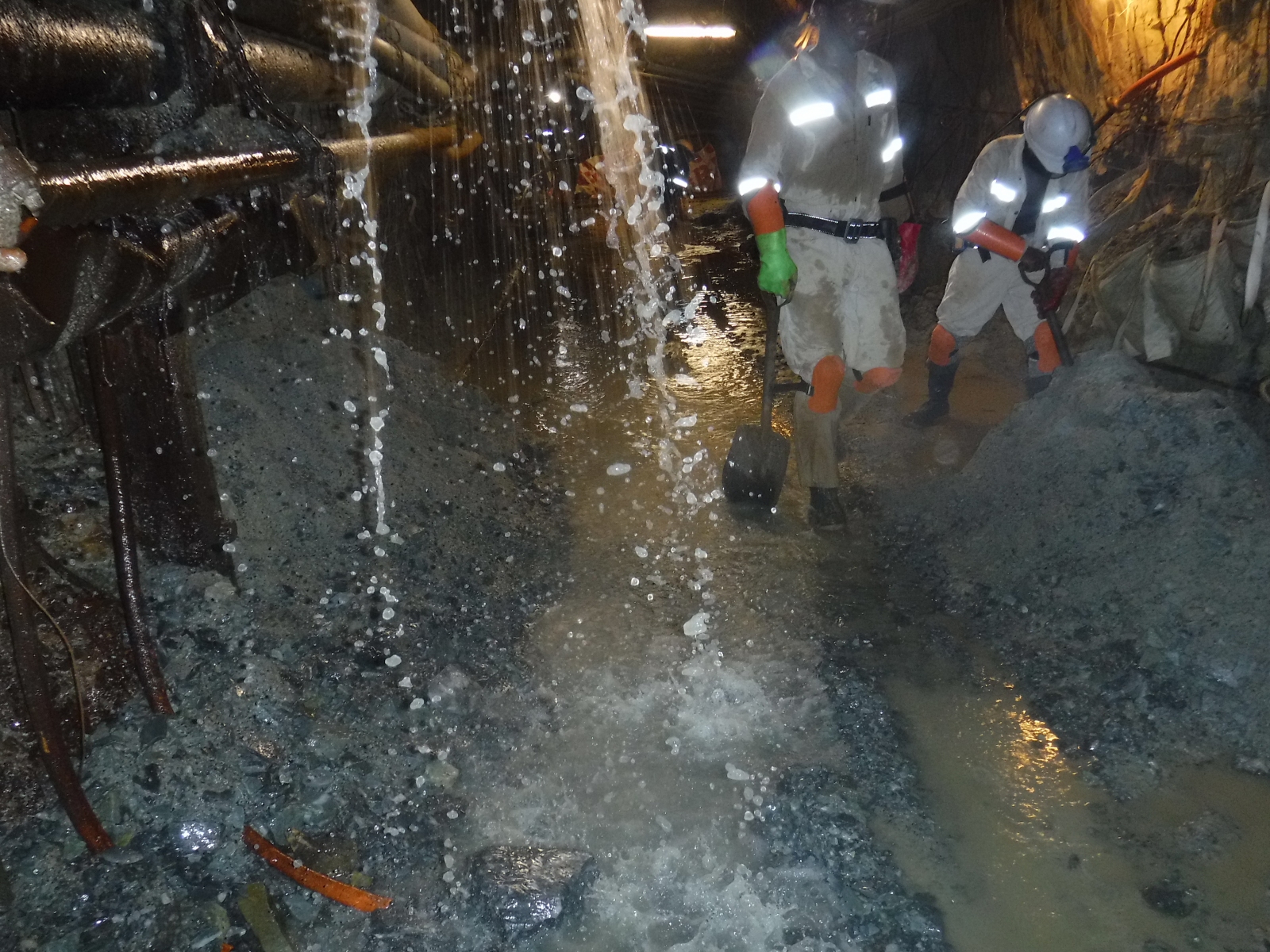

Cross Cut Management: Water ingress in the crosscut. Water falling from the hanging wall onto the track, the source of mud build-up our teams deal with. — Water ingress in the crosscut

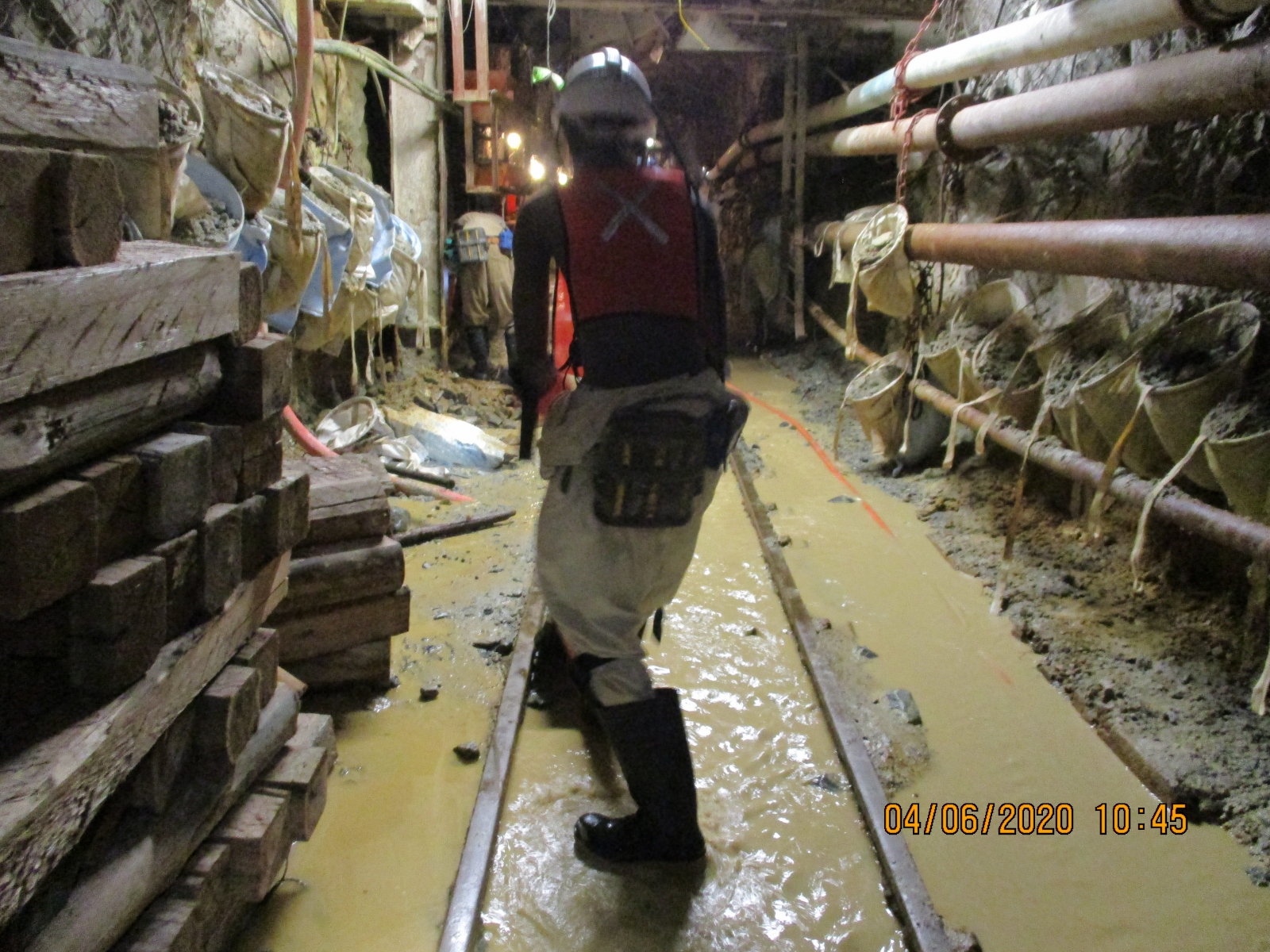

Cross Cut Management: Muddy track. Rails covered in mud and standing water before rehabilitation. — Muddy track

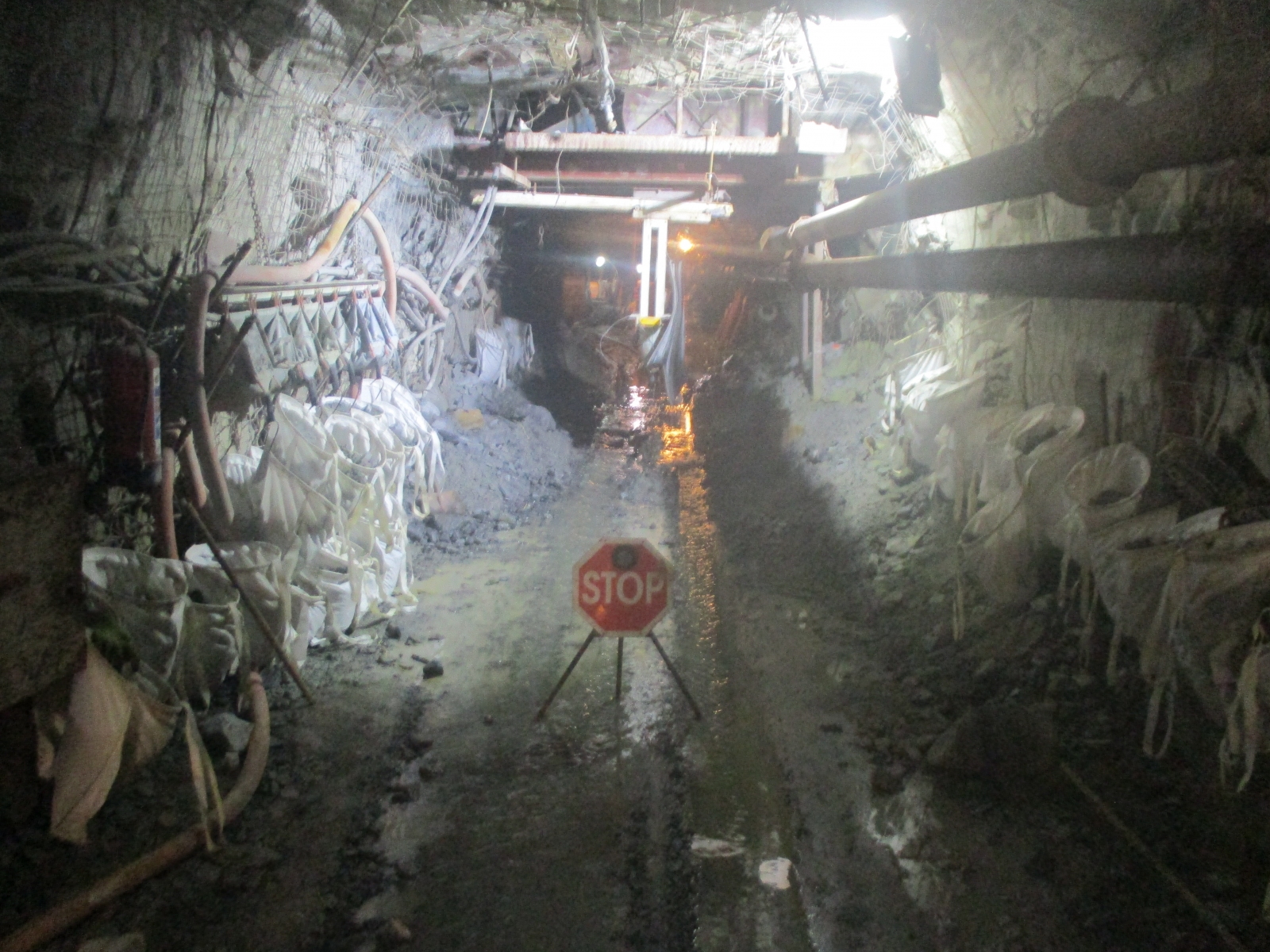

Cross Cut Management: Barricaded work area. Crosscut closed off with a stop sign while rehabilitation work is under way. — Barricaded work area

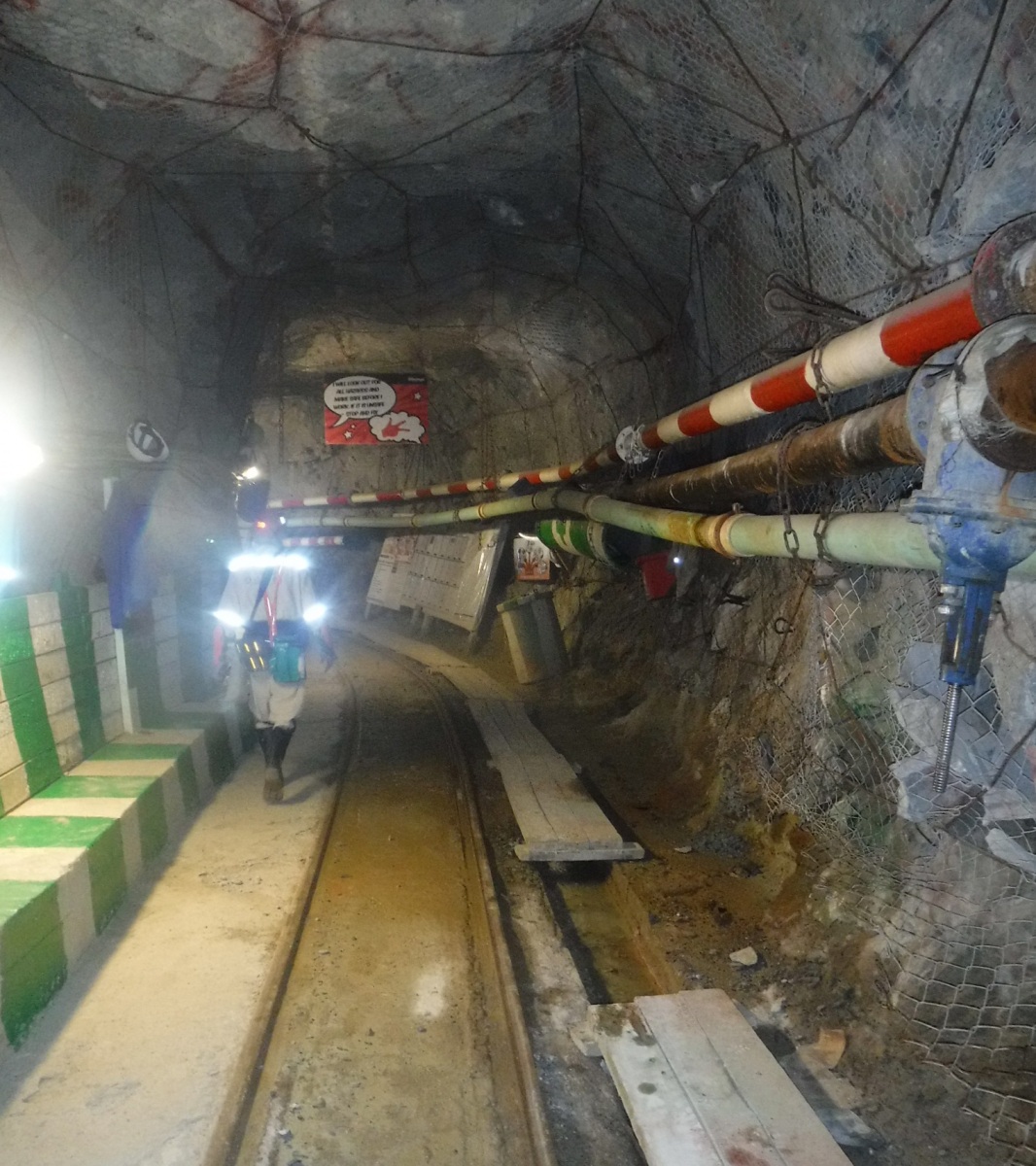

Cross Cut Management: Rehabilitated haulage. Clean haulage with clear rails, marked safety walkway and services along the sidewall. — Rehabilitated haulage
